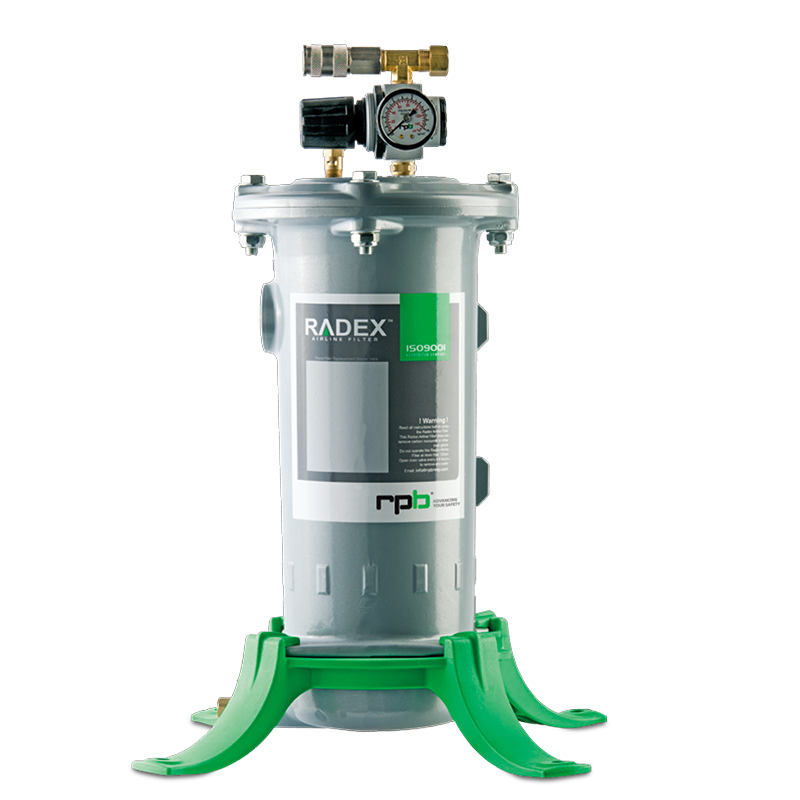

RPB® Radex Breathing Airline Filter
The RPB® Radex breathing airline filter works in conjunction with RPB’s safety hood and helmet respirators. This includes the Nova 3, Nova 2000, T-Link, or Z-Link respirators. The Radex boasts a unique twist-and-lock mounting system that allows easy mounting. This mounting system allows for fixing the unit to the wall or the floor. The standard model features two airflow outlets, with a 6-outlet system also available for the unit. DOES NOT remove carbon monoxide (CO) High capacity, large cartridge for effective filtration Filter cartridge has 7-stage operation Compatible with brands including Aro, Cejn, Dixion, and Rectus.
The RPB RZ fitting is also available, they are unique to RPB and Guarantee that an operator cannot plug their breathing airline into any other fitting, saving lives. The large, 6-stage filter cartridge removes moisture, odor and particulates to 0.5 micron from the compressed air stream.
Applications
Typically used in Blasting, Painting or welding operations to filter out oils and other contaminants from compressed air stream. Use in conjunction with the GX4 Gas Monitor to detect the presence of harmful gases in the air supply. Typically used with RPB’s GX4 Gas Monitor and C40 Climate Control device.
NOTE: The 2-outlet system has a capacity of 30 CFM and is designed for a single operator with any climate control tube, along with the CO monitor. However, the 6-outlet version has a capacity of only 75 CFM, which means it can support 5 operators (along with the CO monitor) only if they are using Constant Flow Valves. Due to the higher CFM requirements of the Climate Control Tubes, only 3-4 operators (using the blue cool tubes) and 2-3 operators (using the C40) can be simultaneously supported with the current 6-outlet version.
Specifications
– Large capacity, 6-stage filter cartridge
– Effectively filters any particulates larger than 0.5 micron
– Optional drain valve to remove moisture from filter housing, to expand cartridge lifespan
– Range of 0-125 psi outlet airflow
– Meets ANSI and other industry safety regulations
– Quick disconnect coupler, compatible with ARO, CEJN, Dixion, and Rectus brands
Available configurations:
– 2-outlet, standard fittings, MPN: 04-900
– 6-outlet, standard fittings, MPN: 04-906
– 6-outlet, RZ fittings, MPN: 04-906-RZ
– Also available in the Complete GVS Breathing Air package, MPN: 04-907, including:
– GX4 Gas Monitor
– 2-outlet Radex filter
– Supplemental Mainline Pre-filter
– Supplemental Micro Mist Pre-filter
– Wall bracket & associated fittings
