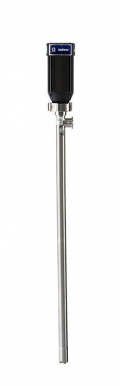

Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilises proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.
Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications
SaniForce 2:1 Sanitary Piston Pump:
Flow rates range from 5.7 lpm (1.5 gpm) at 60 cpm, up to 9.5 lpm (2.5 gpm) at 100 cpm
Quick disconnect clamps for easy disassembly
Fluid transfer and supply of materials up to 50,000 cps
Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics
Easy Mounting:
SaniForce 2:1 pump fits through standard bung hole
FDA-compliant bung adapter accessory available for easy mounting
Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
Most advanced air motor on the market
Available in double-ball and priming piston designs
Fluid transfer and supply of low to medium viscosity fluids
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
Available in double-ball and priming piston designs
Fluid transfer and supply of low to medium viscosity fluids
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Most advanced air motor on the market
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
Available in double-ball and priming piston designs
Most advanced air motor on the market
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
Fluid transfer and supply of low to medium viscosity fluids
FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
Saniforce 5:1 Ratio.55 gallon drum length. 316 stainless steel with PTFE, UHMWPEand FKM packings. Up to 400 psi fluid pressure.Up to 14.0 GPM. 2” Tri-Clamp fluid outlet. 1/2” npsm(f) airinlet. Shipment within 3-4 weeks normally Parts Manual
$17,360.00
Item Code: 24F625
Mfg Item No: 24F625
SANIFORCE PISTON PUMP,12:1 PP ST
$17,360.00
SANIFORCE PISTON PUMP,12:1 PP ST
Graco's sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
Quick knockdown lower
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
Product highlights:
Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Graco's sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
Quick knockdown lower
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
Product highlights:
Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
Most advanced air motor on the market
Available in double-ball and priming piston designs
Fluid transfer and supply of low to medium viscosity fluids
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
SaniForce 5:1 Sanitary Transfer Pump:
Flow rates up to 14 gpm (53 lpm)
Maximum fluid pressure of 400 psi (28 bar; 2.8 MPa)
Siphon up to 5,000 cps and up to 100,000 cps if immersed
Available in double-ball and priming piston designs
Fluid transfer and supply of low to medium viscosity fluids
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Most advanced air motor on the market
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
