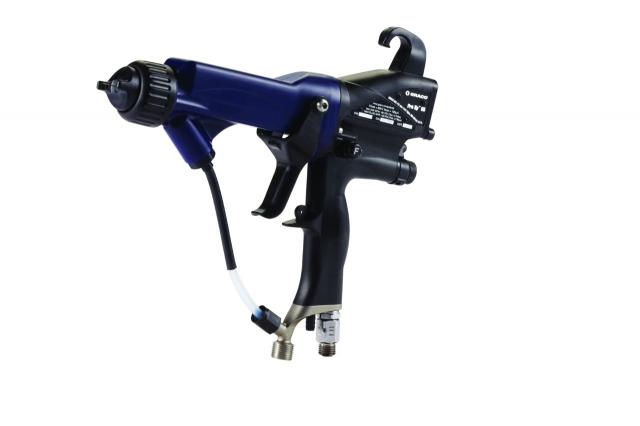

The ergonomic design and efficiency of this 85 kV high conductivity model can help your paint line save money and improve quality.
For spraying low resistivity materials, such as abrasives and metallic coatings
For highly conductive coatings. 85 kV. Ergonomic design. Internal turbine power supply. No cables or electric supply required. 1.5 mm(0.055") nozzle. Requires special grounded air hose assembly to be ordered separately (223070).
| Air Inlet Size (cm) | 0.635 |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Gun Weight (g) | 676 |
| Gun Weight (kg) | 0.675 |
| Gun Weight (lb) | 1.49 |
| Gun Weight (oz) | 23.81 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Overall Length (cm) | 26.67 |
| Overall Length (in) | 10.5 |
| Overall Length (mm) | 266.7 |
| Series | 85 |
| Technology Type | Air Spray |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Display Type | Standard |
| Maximum Paint Resistivity (megohm/cm) | 25 |
| Minimum Paint Resistivity (megohm/cm) | 1 |
| Nozzle Size (cm) | 0.15 |
| Nozzle Size (in) | 0.055 |
| Nozzle Size (mm) | 1.5 |
| Voltage (kV) | 85 |
