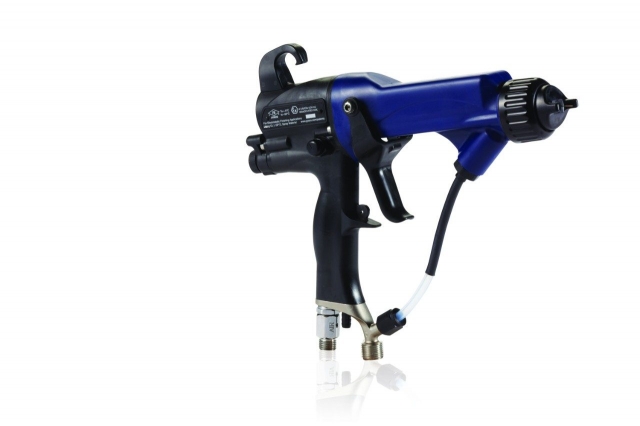

PRO XP GUN,ES,85KV | L85T10 | Grapek Bates

PRO XP GUN,ES,85KV | L85T10 | Grapek Bates
Our Price: $8,860.00
Item Code: L85T10
Mfg: Graco

The 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.

  • Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
  • The electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
  • Built-in durability means the paint spray gun is designed to last – and made in the USA.
  • Internal power supply reduces operator fatigue with no heavy cords to slow you down.
  • Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

Ergonomic design.  85 kV.  Internal turbine power supply.  No cables or electric supply required.  1.5 mm (0.055") nozzle.  Requires special grounded air hose assembly to be ordered separately (223070).

PARTS MANUAL

Technical Specifications

Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Gun Weight (g) 676
Gun Weight (kg) 0.675
Gun Weight (lb) 1.49
Gun Weight (oz) 23.81
Includes Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kg/cm²) 7.14
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°C) 48
Maximum Fluid Temperature (°F) 120
Model Pro Xp
Overall Length (cm) 26.67
Overall Length (in) 10.5
Overall Length (mm) 266.7
Series 85
Technology Type Air Spray
Maximum Fluid Pressure (MPa) 0.7
Fluid Inlet Size (in) 3/8
Fluid Inlet Thread Gender Male
Display Type Standard
Maximum Paint Resistivity (megohm/cm) Infinity
Minimum Paint Resistivity (megohm/cm) 25
Nozzle Size (cm) 0.15
Nozzle Size (in) 0.055
Nozzle Size (mm) 1.5
Voltage (kV) 85
