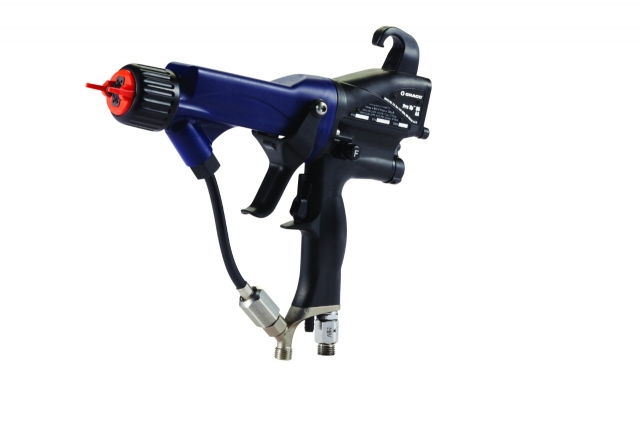

GUN, ES, 85KV, AA | H85T10 | Grapek Bates

GUN, ES, 85KV, AA | H85T10 | Grapek Bates
Our Price: $10,070.00
Vendor: Graco
Item Code: H85T10

Pro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership. Pro Xp85 AA gun line includes Standard and Smart models.

  • High quality spray performance with a one-piece aircap and variety of spray tips.
  • Alternator speed indicator light ensures your turbine speed is running at the correct level.
  • Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier.
  • Increase transfer efficiency up to 10%.
  • Internal power supply reduces operator fatigue with no heavy cords to slow you done.
  • Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.
Quantity:

Air Assisted Airless Manual Spray Gun.  85 kV.  Ergonomic design.  Internal turbine power supply.  No cables or electric supply required.  Choice of 1 fluid tip.  Requires special grounded air hose assembly to be ordered separately.  (223070)

 PARTS MANUAL

Technical Specifications

Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Gun Weight (g) 728
Gun Weight (kg) 0.73
Gun Weight (lb) 1.6
Gun Weight (oz) 25.68
Includes Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar) 210
Maximum Fluid Pressure (kg/cm²) 214.14
Maximum Fluid Pressure (kPa) 21000
Maximum Fluid Pressure (psi) 3000
Maximum Fluid Temperature (°C) 48
Maximum Fluid Temperature (°F) 120
Model Pro Xp
Overall Length (cm) 27.18
Overall Length (in) 10.7
Overall Length (mm) 271.8
Series 85
Technology Type Air-Assisted
Maximum Fluid Pressure (MPa) 21
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Male
Display Type Standard
Maximum Paint Resistivity (megohm/cm) Infinity
Minimum Paint Resistivity (megohm/cm) 3
Voltage (kV) 85
